API Gateway Mapping

Introduction

API’s are managed via API Gateway

Note: API Gateway is hosted in Melbourne region (ap-southeast-4) and Lambda functions are hosted in Sydney region (ap-southeast-2) Edit: This has been since updated for API Gateway and Lambda to be in ap-southeast-2 (Sydney)

API Types

Note: there are 3 APIs, only which one (Kman API) will only work with these instructions.

• Remote Flow Client API: https://client-api-dev.remoteflow.dev/
• API v1: https://api-dev.remoteflow.dev/ (deprecated)
• Kman API: https://admin-api-dev.remoteflow.dev/

API Gateway

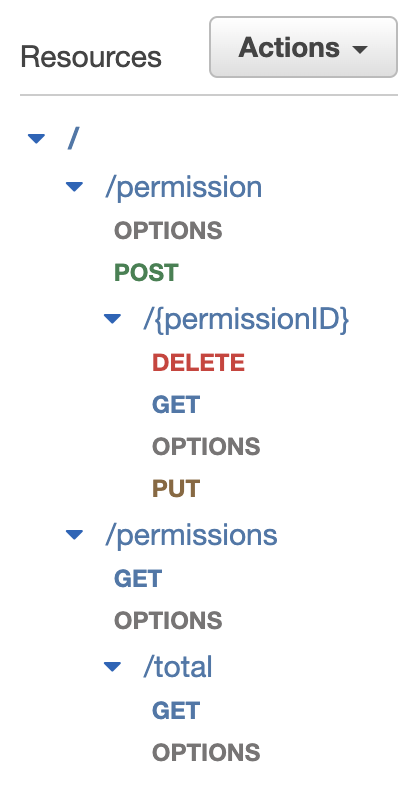

For every “module”, there is generally the following structure:

Occasionally, you may get module sub-functions, which look like

POST /module/sub-function

Create API Gateway Resources

A resource is typically the “URL path”.

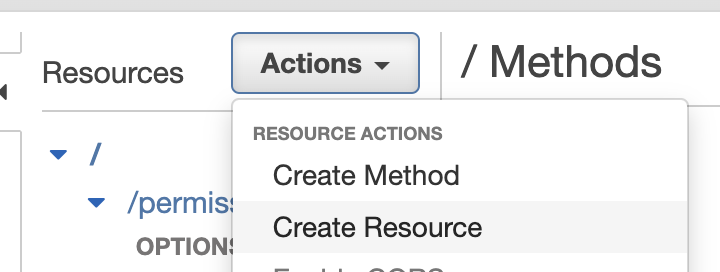

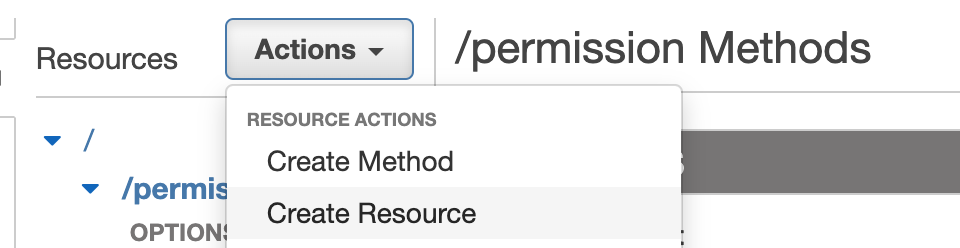

Click on the root “/” resource and then click Actions – Create Resource

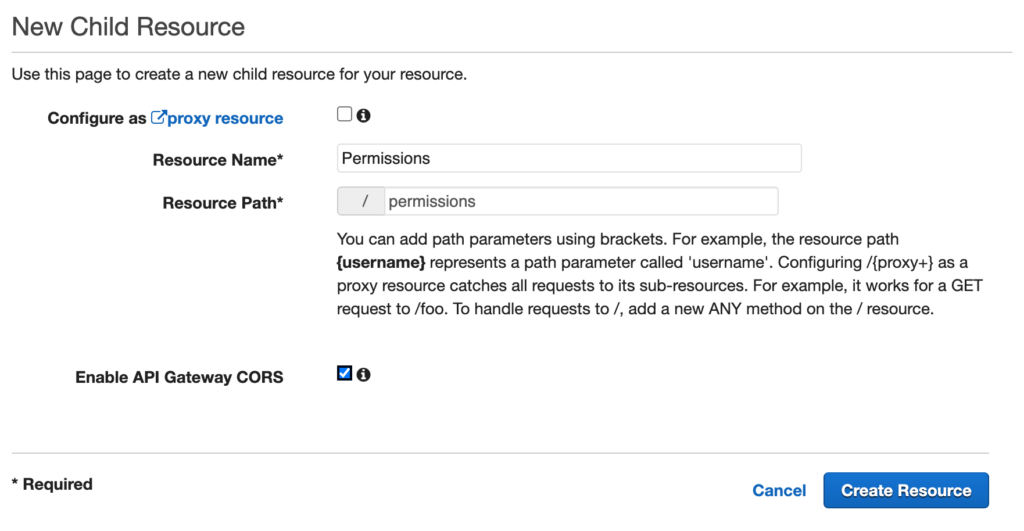

In the Resource Name, type in the name of the module

In the Resource Path, type in the lower case name of the module without spaces.

Check Enable API Gateway CORS

You would typically create 2 root resources per module.

In the singular module, you need a sub-resource which is the “ID parameter” resource.

Select the singular resource on the left and then click Actions – Create Resource

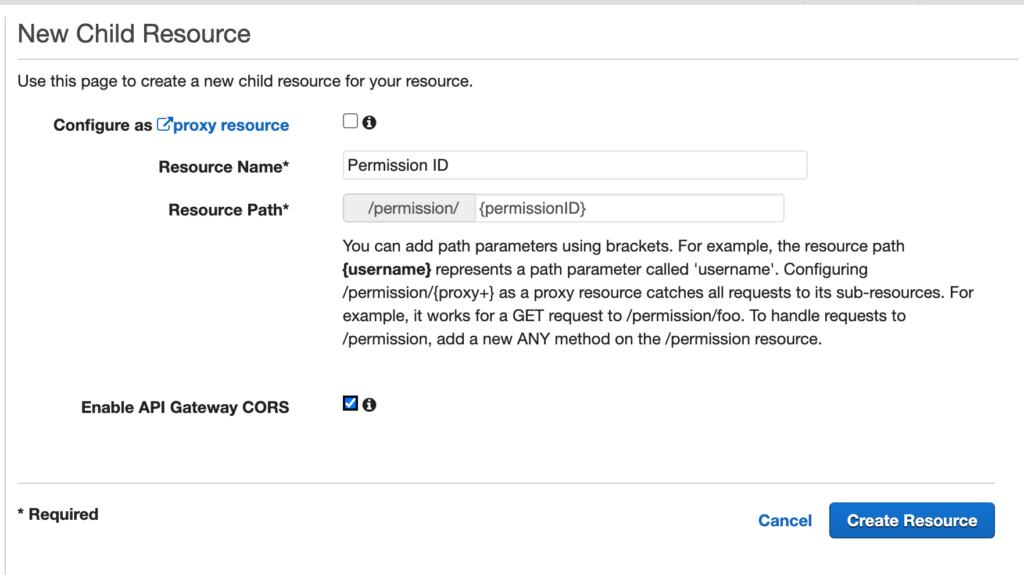

In the Resource Name, type in the “name of the module” + ID

In the Resource Path, type in the lower case name + ID of the module without spaces. Make sure that the path is surrounded in braces! This indicates a proxy / parameter resource.

Check Enable API Gateway CORS

Create API Gateway Methods

Each API Method will need to be mapped for each Resource (or API Route)

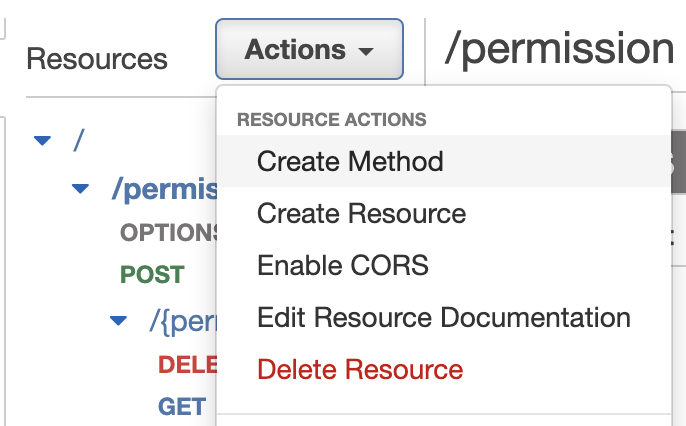

To create a Method, click on the appropriate resource and then click Actions – Create Method

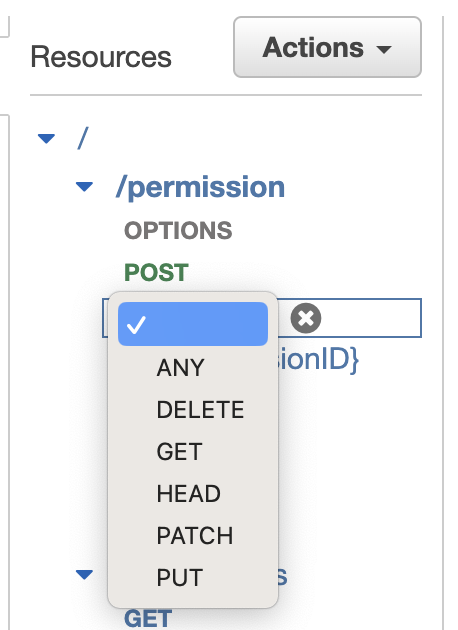

On the left, there will be a dropdown of the method options. Choose the relevant method.

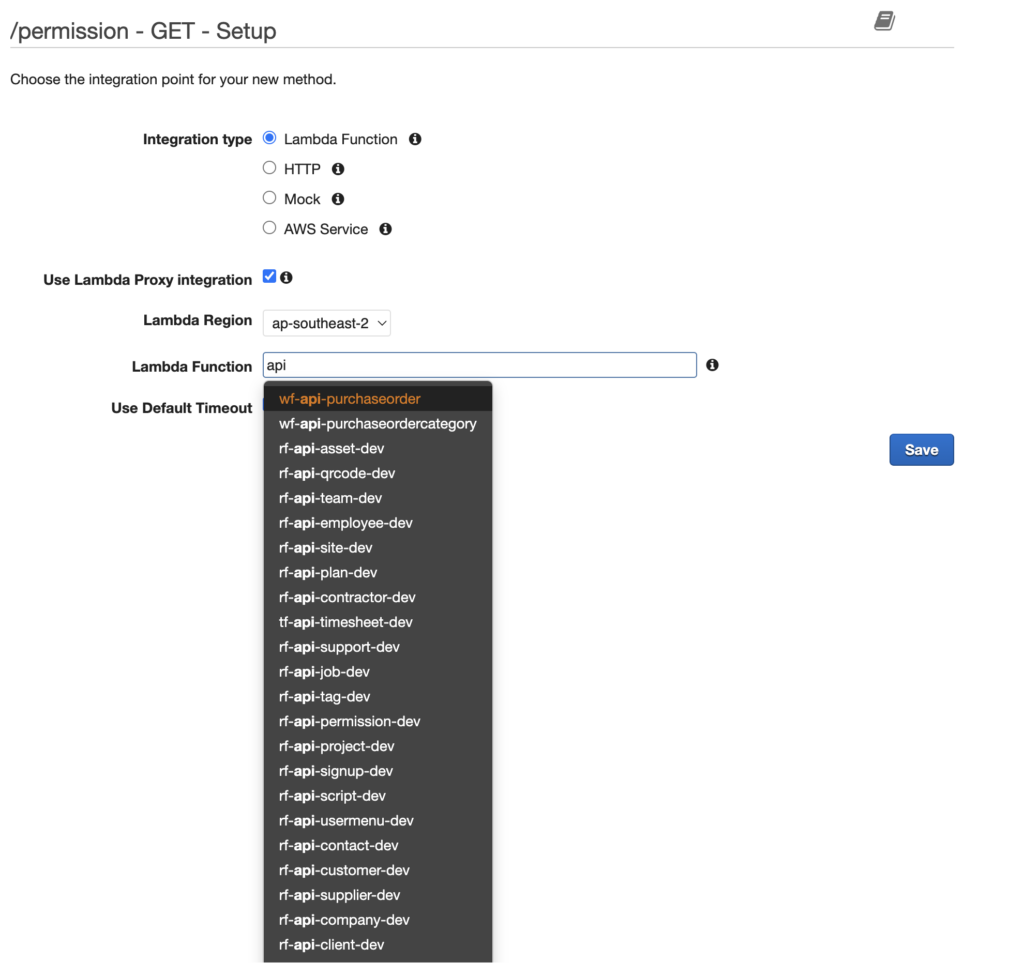

Once you select the method, you will see the form update to the right.

Integration Type: Lambda Function

Use Lambda Proxy integration is checked

Select ap-southeast-2 as the Lambda region

Type in the function name and then select from the drop

Use Default Timeout is checked

Note: There are other ways to link Lambda Functions from different AWS accounts, which is a separate topic.

Replace for each Resource / Method required.

Enabling CORS

For the API routes to work in the browser, the CORS headers need to be updated.

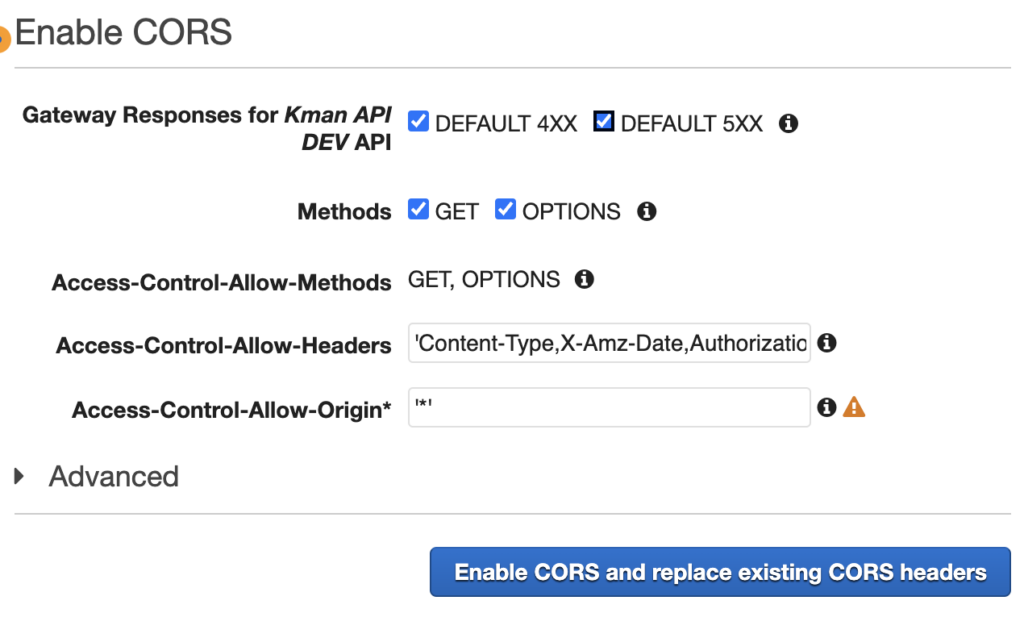

Select the Resource and click Actions – Enable CORS

Select all the methods (they will differ based on the Resource / Route) and click on Enable CORS…..

Deploying API

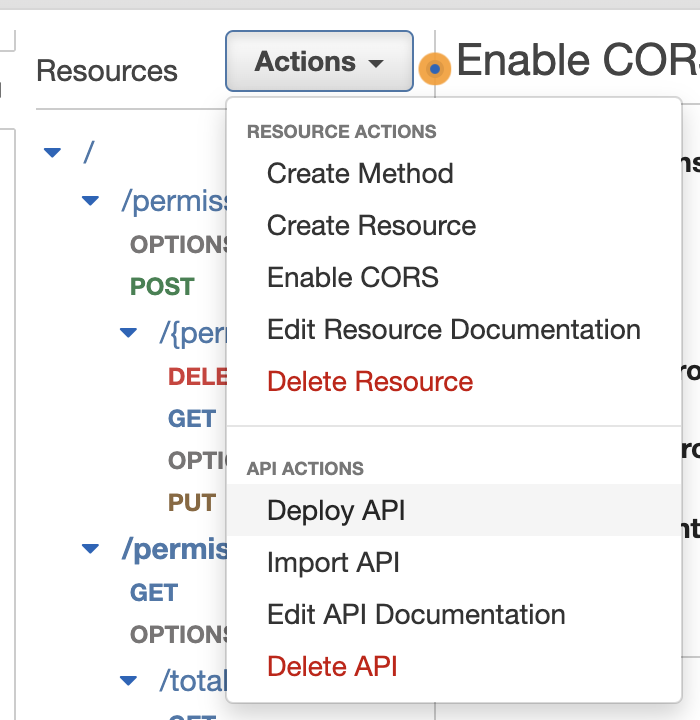

For the routes to be active – the API needs to be Deployed. Click on Actions – Deploy API
